Fiscal Printer FP-T88FVA Online
download
user manual
Integrated, clear, two-line display
Fiscal lifetime: 2100 daily records

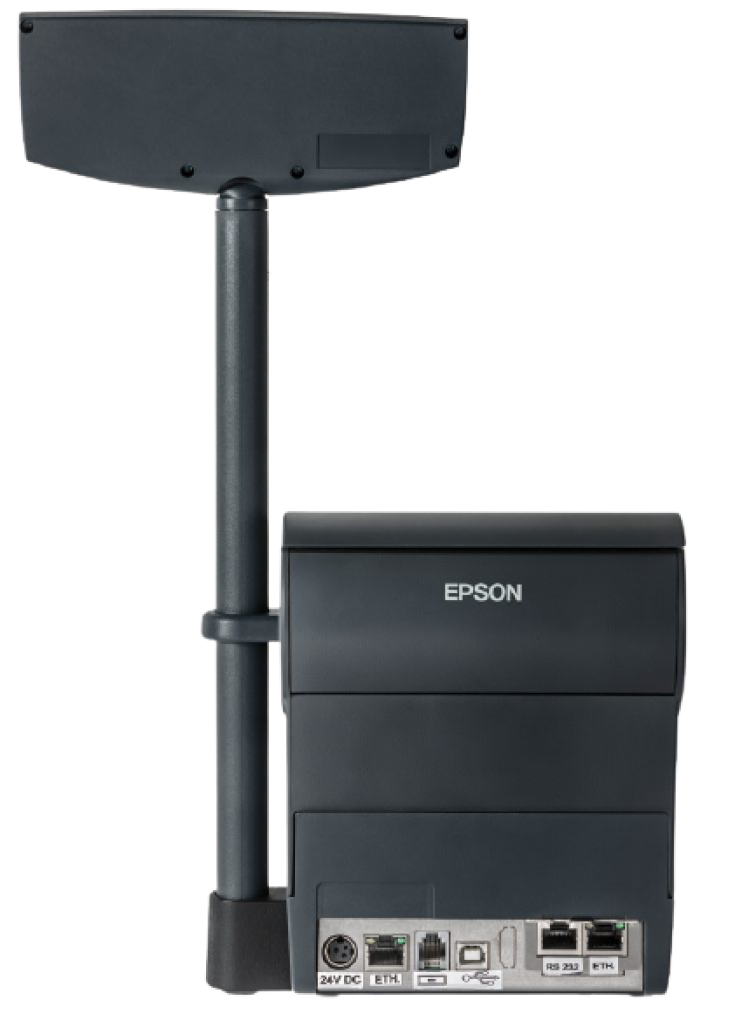

Interfaces RS232, ETH
easy load mechanism

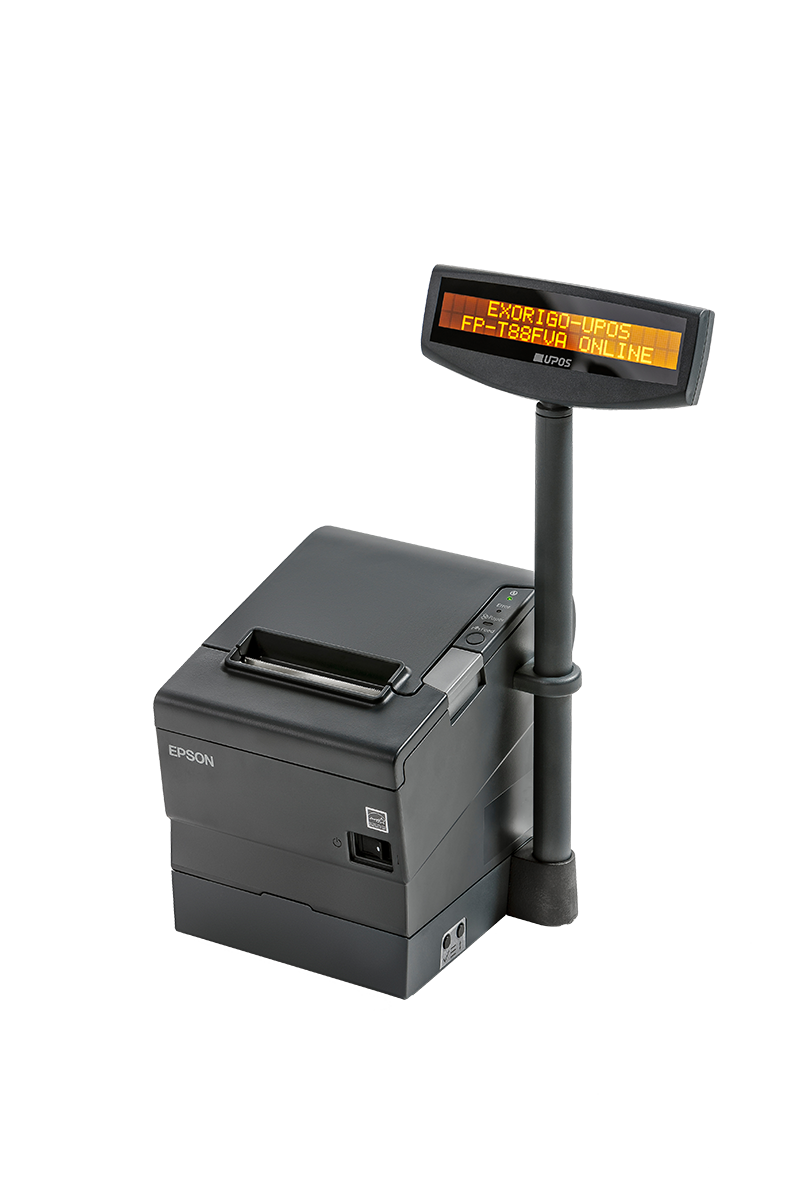

FP-T88FVA Online fiscal printer
Online fiscal printer adapted to intensive sales conditions, with printer fiscal reconciliation taking place on connection to the Central Repository of Cash registers (CRK).
Two font sizes on the display
Built-in LAN switch

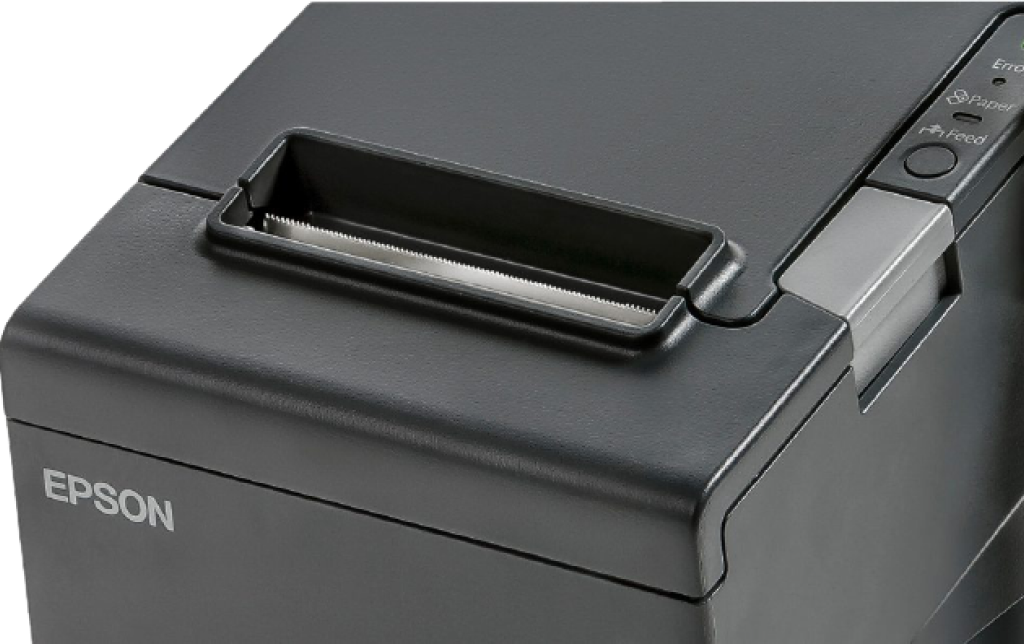

Printing mechanism EPSON TM-T88V
Carries up to 8 personalized graphics
Wide paper support (up to 80 mm)
Data backup onto a microSD card
Dedicated software for viewing its contents
Product database: 350,000 products
Advantages
- Adapted for intensive sales conditions.
- Supports saving copies of data on a microSD carrier.
- Complies with the requirements of the Ministry of Finance.
- Enables customization of non-fiscal printouts.
- Ensures consistent print quality across all types of cashier stations
- Highly reliable and durable.
Technical data
General Information
Name
FP-T88FVA Online
Construction
Compact, free-standing
Dimensions (h x w x l)
195 x 242 x 363 (standard mast)
Weight
3 kg
Printing mechanism parameters
Type
Thermosensitive, single-layered, in Rolls
Printing speed
Standard 32 lines/sec.
Paper width
80 mm or 58 mm (± 0,5 mm)
Diamer of the roll (maximum)
83 mm
Number of characters in the line
Up to 56 characters depending on the font size and paper width
Paper width
80 mm or 58 mm (± 0,5 mm)
The diameter of the thimble
nner: 12 mm, external: 18 mm
Reliability of the mechanism
20 mln lines
Reliability of the head
150 km of paper
Reliability of the cutter
2 mln cuts
MCBF
70 mln lines
MTBF
360 thousand hours
Fiscal parameters
Capacity of the commodity base
350 000 PLU
Number of daily records
2100
The method of creating the commodity base
Automatically, during the sale
Number of fiscal VAT invoices
No restrictions
Number of VAT rates
7 (A … G)
User parameters
Power type
AC- battery, external battery + 24V DC, 2.1A
Voltage
24V DC
Power consumption
Maximum: 48 W
Typical: 41 W
Standby: 4 W
Typical: 41 W
Standby: 4 W
Permissible value ranges for sizes alphanumeric and numeric
Depending on the font chosen and the width of the paper – to 56 characters; capital letters, numbers, characters:. ,% \ /
Price per unit
0.01 .. 429496,72
Quantity
0.005 … 429496,7295
Transaction amount for one item
0.01 .. 429496,72
Payment amount
0,01 .. 1717986,91
Daily amounts (total)
0,01 .. 54975581,38
Minimalny czas życia baterii podtrzymującej zegar:
5 years
Battery working time
48 hours, 6,000 print lines (after charging 24 hours)
The maximum number of items on the receipt or invoice
547
